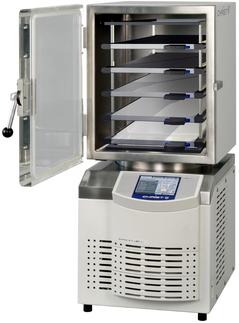

Laboratory Freeze Dryer - electrically heated shelves without cable clutter

Facts and benefits:

• rectangular frontloader instead of round acrylic chamber for easy handling
• electrically heated shelves with WST (Wireless Shelf Technology) for reduced cycle times and homogeneous results
• WST avoids difficult handling of wired shelves and racks after prefreezing.
• No freezing of cables on freezer wall or on ice condenser, when freezing directly in the lyophilizer.
• The temperature of each shelf is controlled individually by means of the built-in T-probe via the control system LSC p l u s corresponding to the real energy consumption of sublimation.
• Every shelf has plugs for 1 product temperature probe and 1 Lyo-Rx probe.
• central vacuum fitting NS 45/40
• Option: manual adjustment of shelf interdistances in 3 mm steps with a latching mechanism
• Option: plus flask drying


LyoCube^® 4-8

• Shelf dimensions: width x depth x height = 250 x 300 x 18 mm
• Area of 1 shelf: 0.075 m²
• Shelf area and interdistance: 0.375 m² with 5+1 shelves for example s = 57 mm
• Chamber dimensions: width x depth x height = 336 x 370 x 426 mm
• Chamber volume: 53 l
• Weight: ca. 49 kg
