Do you need to generate your own GC calibration gas standards?

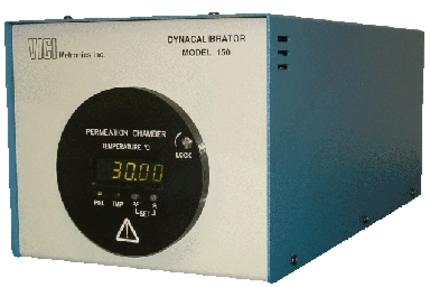

The Dynacalibrator 150 is a compact calibrator capable of delivering the precise concentrations you require. A passivated glass-coated permeation chamber houses the permeation device(s), with measured inert carrier gas sweeping the calibration gas/vapor from the chamber. The digital temperature controller maintains the chamber temperature at a set point with an accuracy of ±0.01°C, traceable to NIST standards. The wide range of temperature settings (5°C above ambient to 110°C) means the end user can generate a wide range of of both low and high vapor pressure chemical compounds. The volumetric concentration can easily be established or changed by varying the carrier gas flow*.

Advantages:

• Temperature accuracy traceable to NIST standards
• PPB to high PPM range
• Permeation devices available with hundreds of different compounds
• Compact design

*Flowcontroller not included

For more information about the Dynacalibrator Model 150 and our permeation devices just click the button below!
