Rapid automated nitrogen/protein analyser

Combustion is actually a very old method for converting contaminants into oxides. In 1848 Jean Dumas had already developed a simple method for burning organic sample material and trapping the resulting gas mixture.

This breakthrough made it possible to selectively separate the combustion products. Now, chemists were able to calculate back to the content of carbon and hydrogen and subsequently nitrogen. In this method, the sample is burned in an oxygen rich atmosphere at an elevated temperature and the resulting reaction products are trapped and analysed.

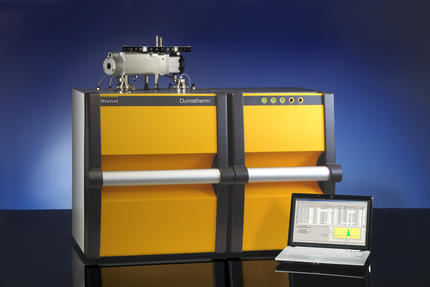

Today, C. Gerhardt, the market leader for Kjeldahl nitrogen analysis, can offer the fastest and most efficient instrument for the nitrogen determination according to Dumas’ principle. The clever design and direct analysis of all resulting gases provides the user with precise results within 2-3 minutes.

Low sample weights can still be analysed with extremely high precision (recovery rate
> 99.5 % and a standard deviation < 0.5 %). Thanks to the construction of the instrument, DUMATHERM has hardly any wear and tear on parts. The DUMATHERM Manager software controls the DUMATHERM, which makes working with the instrument extremely user-friendly.

Available with a unique manual sample loader or an autosampler for up to 120 samples DUMATHERM performs according to international standards and regulations, such as AOAC, AOCS, ASTM, DIN, etc. Examples:

Protein in:

• Feed AOAC 990.03
• Grain AOAC 979.09, 920.87, 992.23
• Grain products, oil seeds DIN EN ISO 16634
• Meat and meat products  AOAC 992.15 or AOAC 928.08, § 64 LFGB L 06.00-20
• Beer, wort, grain for breweries AOAC 997.09
• Malt and raw material for breweries AOAC 920.53, 950.09
• Milk and dairy products § 64 LFGB L 01.00-60, L 02.00-24
• Starch

Nitrogen in:

• Soil (Fertilizer) DIN 11512-20, DIN 19684-Teil 4 or AOAC 973.48
• Soil improvement and culture media
• Fertilizer AOAC 993.13, DIN EN 13654-2
• Petroleum
• Coffee
• Plastics
• Paper
• Explosives
• Tobacco
• Urine
• Water DEV, H11, H28
• Pulp

For further information on C. Gerhardt instruments, please visit our Product Website or contact us by email via the Button "Contact Supplier".
