TOF mass spectrometers: STT-1800

Real-time, high-resolution, and high-sensitivity composition monitor for gases and liquids

Spacetek Technology AG

Full quantitative chemical analysis up to ten times per second

Autonomous instrument directly integrated into your production equipment

Remote control and supervision, including live results in real-time and around the clock

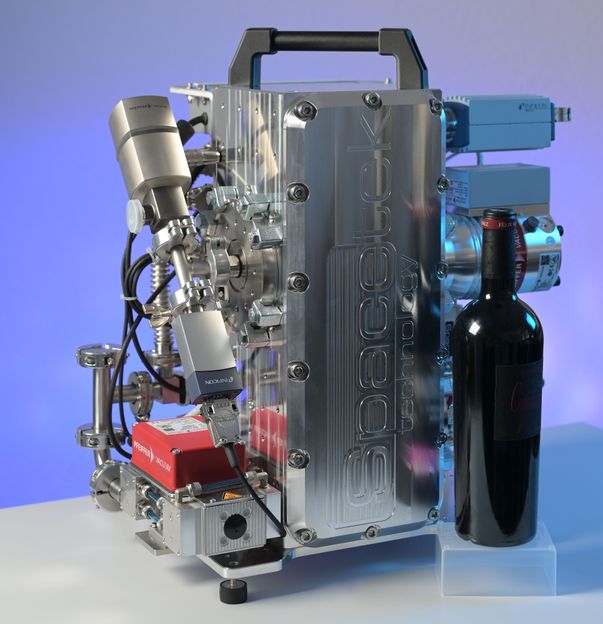

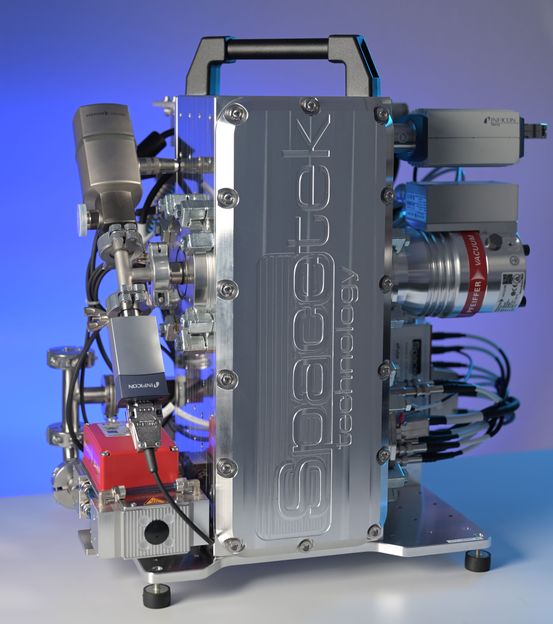

STT-1800 Time-of-Flight Mass
Spectrometer
Smallest instrument of its kind worldwide
Resolution of isobaric interferences
Direct Measurement of 84Kr in Air (
Software Solution

TOF-MS Technology for Highest Product Quality, Real-time, In-line, Sensitive

Our compact TOF-MS can be mounted in-line of industrial manufacturing equipment, providing constant monitoring of products and production processes. All species are detected simultaneously and continuously every 100 ms without dead time. We reach a mass resolution of 1800 at full width at half maximum, a detection limit below 1 ppm and a dynamic range up to 8 decades. No scanning of the mass scale is required. The noise level over the full mass range is constant, allowing the detection of small quantities of heavy chemical compounds.

The STT-1800 is mechanically simple and very robust. Hence, it is well suited for high-reliability applications in industry and harsh environments. The instrument is fully network compatible, controlled and operated in a web browser-based single-page application, providing measurement data streams, which are integrating with our software solution for data visualization, data analysis and long-term data storage in a database.

STT-1800 Time-of-Flight Mass
Spectrometer

1

STT-1800 Time-of-Flight Mass Spectrometer

Smallest instrument of its kind worldwide

2

Smallest instrument of its kind worldwide

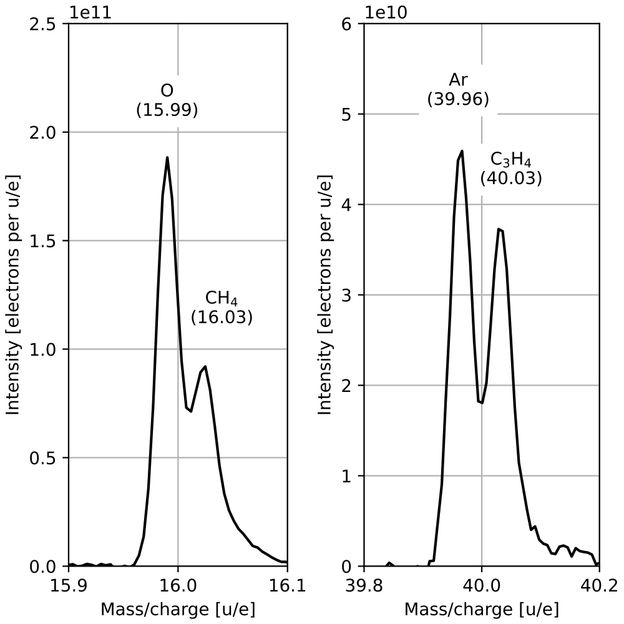

Resolution of isobaric interferences

3

Resolution of isobaric interferences

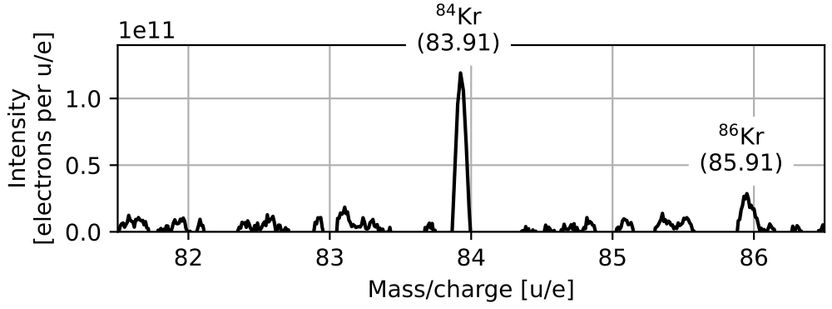

Direct Measurement of 84Kr in Air (

4

Direct Measurement of 84 Kr in Air

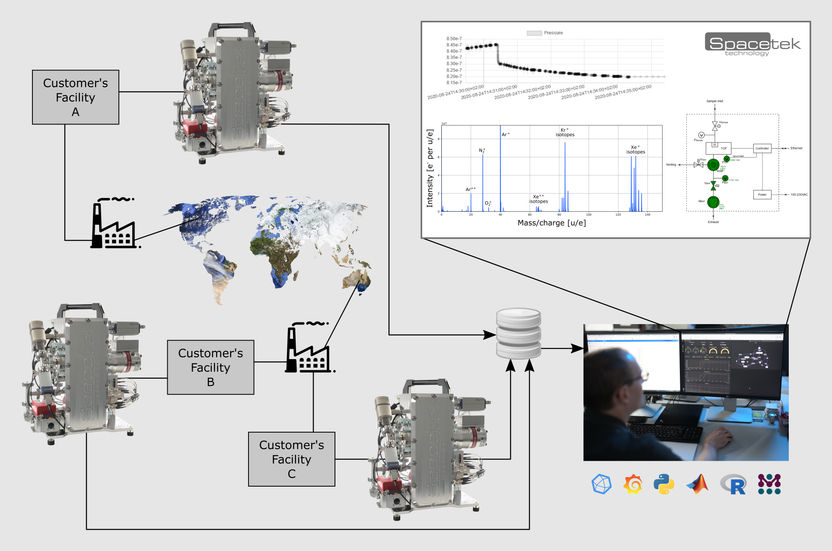

Software Solution

5

Software Solution

Product classification

Applications

Product categories

Target Industries

Beverages
Biotechnology
Chemistry
Food
Pharma
