Zeta Potential Analyzer for Solid Surfaces

The Top 3 Advantages of the Product

Patented technology: oscillatory streaming potential measurement for top-accurate results

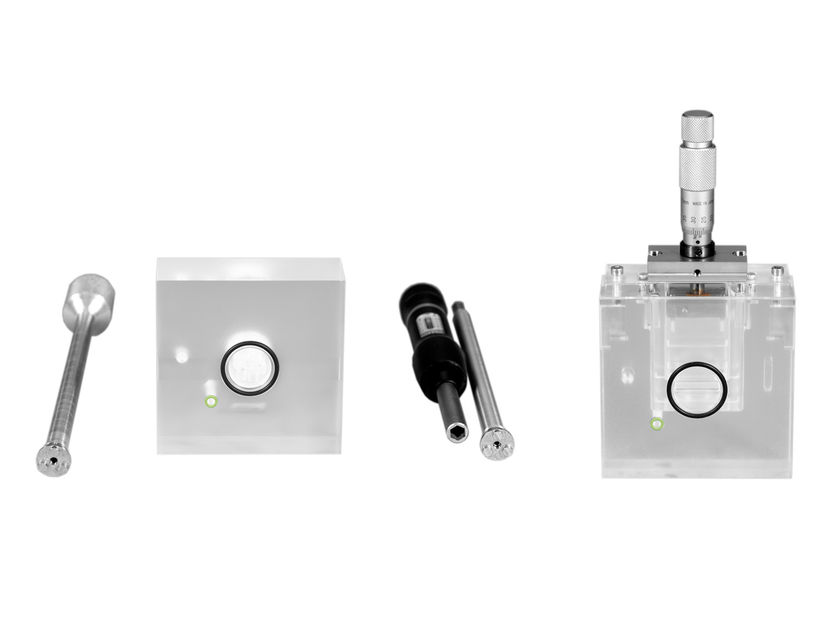

Transparent measuring cells: fillable with high reproducibility & easy-to-clean


Fast results: single measurements + automated titrations for isoelectric point

Powders, fibers & flat samples: Electrochemical analysis helps understanding surface interactions

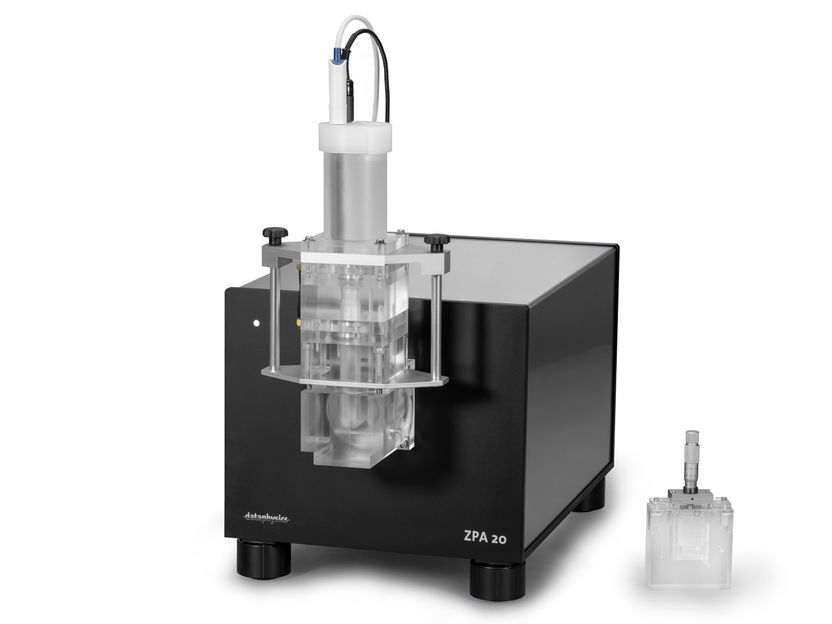

The zeta potential of a surface is determined in order to characterize its electrochemical properties, and to better understand its interactions (e.g. with paints, adhesives, proteins, …). For powders, fibers as well as flat samples measurements are carried out fast, easily, and highly precise with the Zeta Potential Analyzer ZPA 20 from DataPhysics Instruments.

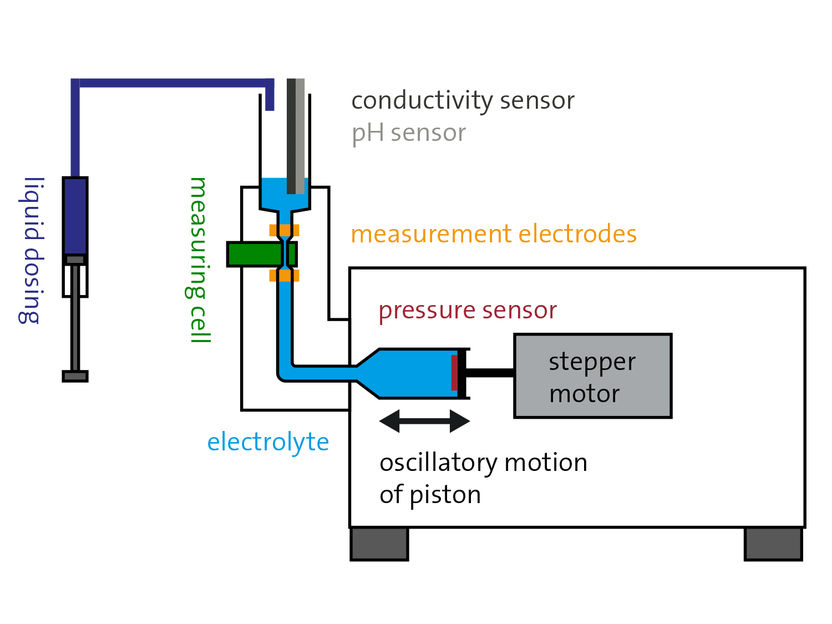

The ZPA 20 works with a patented oscillatory streaming potential measurement method which prevents disturbing polarization of the electrodes and yields the zeta potential within appreciably short time and with high statistic quality. Transparent measuring cells for fibers and powders as well as for flat, plate-shaped samples are available. They convince by convenient handling, in particular filling with high reproducibility, and easy, residue-free cleaning.

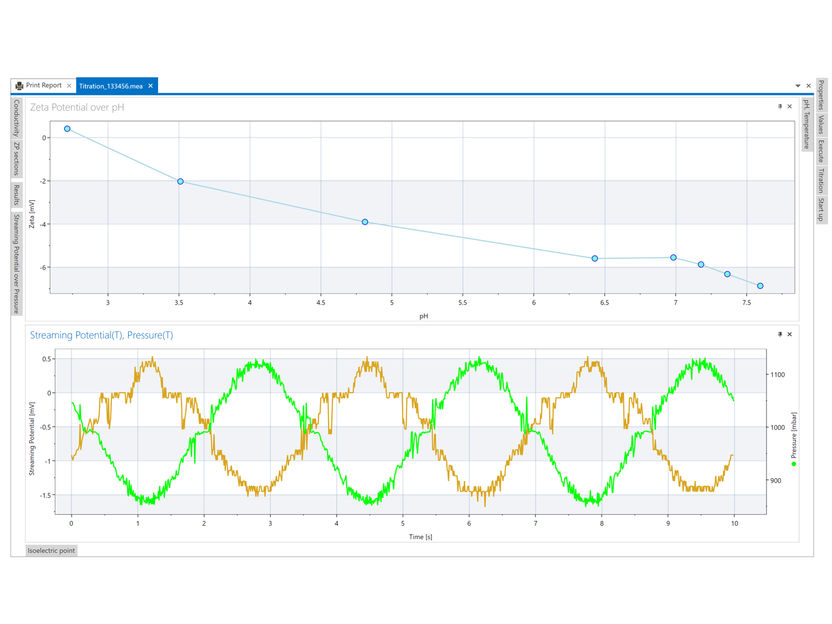

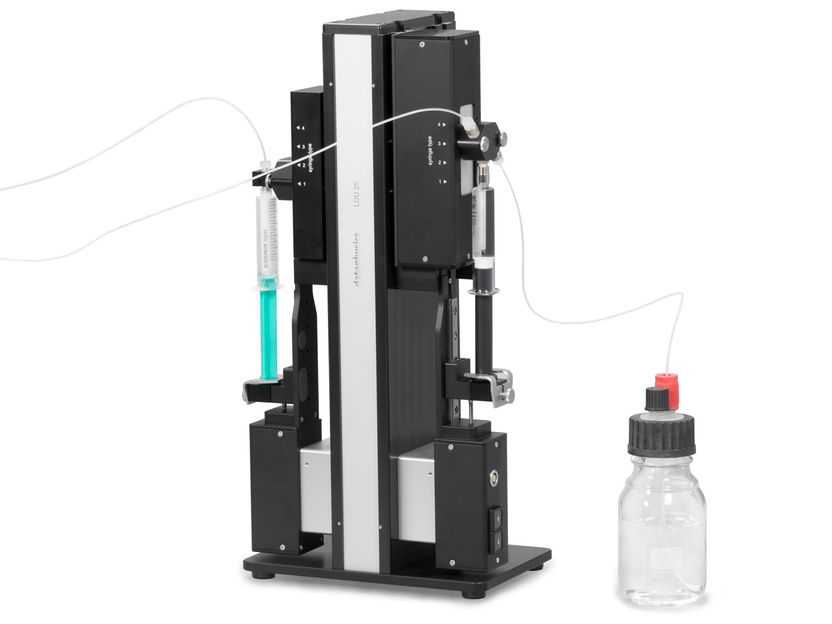

To determine the isoelectric point (IEP) of a surface, a liquid dosing system can be attached to the ZPA 20, which allows an automated pH variation. Fast equilibration, owing to the oscillatory streaming, saves time and makes high sample throughput possible.

  • zeta potential measurement

  • surface analysis

  • material analysis

  • determination of the isoelectric point

  • electro chemistry

  • coating technology

  • adhesive technology

  • filter development
