GPC/SEC systems: GPC-IR
High Temperature GPC/SEC system with Short Chain Branching data for Polyolefin Analysis
Complete characterization of complex polyolefins with composition and triple detection system
Fully automated process including vials filling, dissolution and filtering. Optimum sample care
Allows study of polyolefin degradation, recycling and other polyolefin applications with Infrared
Fully automated and comprehensive GPC for polyethylene and polypropylene characterization
GPC-IR is a fully-automated, high-temperature Gel Permeation Chromatography/Size Exclusion Chromatography, with highly sensitive Infrared detection for Molecular Weight and Chemical Composition analysis of polyolefins, all in one system. This multi-detector GPC is specialized in the analysis of polyolefins, and obtains a simultaneous analysis of concentration and short-chain branching data for the full characterization of polymers such as HDPE, LDPE, LLDPE, Polyethylene, Polypropylene, EP copolymers, EVA, EBA and other complex polymers. Data processing and analysis are simple thanks to the powerful One Software, a comprehensive calculations software that integrates all the detectors’ signals in one platform. Full Automation: GPC-IR performs all the sample preparation steps in an automated manner, including vial filling with solvent and filtering of fillers and gels. The user doesn't handle solvents or transfers vials. GPC-IR also implements a Sample Care protocol to avoid sample degradation during the dissolution and analytical cycle.
1
High-temperature GPC/SEC for polymer analysis. Complete automation of molar mass distribution and chemical composition distribution of polymers.
2

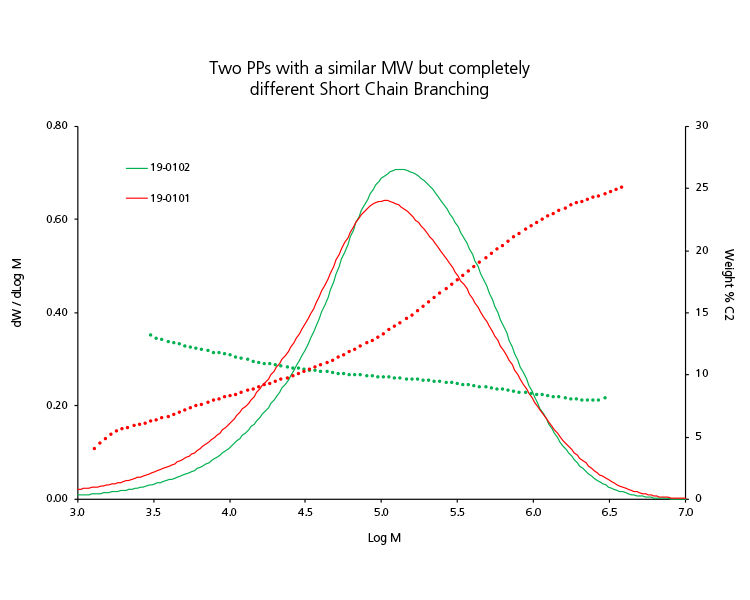

Only GPC-IR is capable of obtaining Short Chain Branching information, crucial information for telling two similar products apart.
3

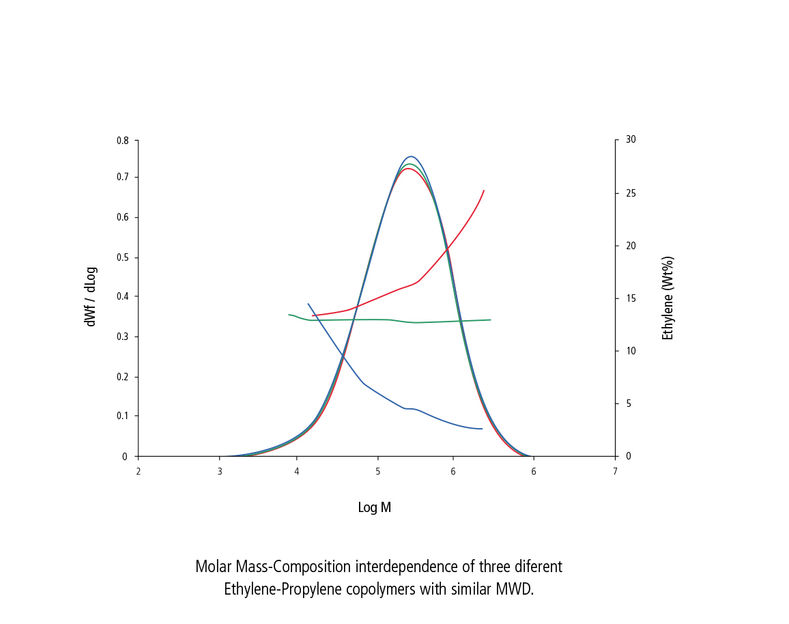

Three EP Copolymers of almost the same Molar Mass but with completely different Ethylene incorporation, differentiated only by GPC-IR
4
The samples have nearly the same MM distribution but the properties and performances are completely different.
5
Highest sensitivity both in concentration and also in Composition, even for the low levels of Short Chain Branching in LDPE samples.
