Insulating standoff bolts, insulating supports and insulators are indispensable construction components for safe electrical separation in chemical engineering systems. These components reliably prevent unwanted current conduction between live parts and grounded structures.

Materials and Technical Properties

The insulators are made from high-quality plastics such as polysulfone (PS) and polyethersulfone (PES), partially glass fiber reinforced for increased mechanical strength. Internal threads made from brass and external threads made from steel ensure secure mechanical connection. The components achieve a dielectric strength of 10 kV/mm and an electrical breakdown strength of 150 kV/mm according to DIN 53481.

Temperature and Chemical Resistance

The operating temperature range from -40°C to +80°C enables use in various environmental conditions. The chemical resistance to alcohols, weak acids and alkalis as well as organic mineral acids makes them ideal for chemical engineering applications. The fire class UL 94 HB meets industrial safety requirements.

Product Variants in the Range

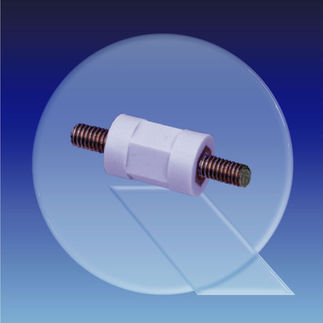

• Insulating standoff bolts made from PS - cylindrical, external thread (M3 - M4)
• Insulating standoff bolts made from PS - cylindrical, internal/external thread (M3 - M6)
• Insulating supports made from PES - hexagonal, external thread
• Insulating supports made from PES - hexagonal, internal/external thread
• Insulating supports made from PES - hexagonal, internal thread
• Insulating supports made from PES - cylindrical, external thread
• Insulating supports made from PES - cylindrical, internal/external thread
• Insulating supports made from PES-glass fiber reinforced - drum type
• Insulating supports made from PES-glass fiber reinforced - conical
• Insulating supports made from PES-glass fiber reinforced - conical with hexagon
• Insulating supports made from PES-glass fiber reinforced - hexagonal
• Medium voltage insulator made from epoxy resin

Application Areas

These medium voltage insulators are used in circuit breakers, switching chambers, disconnect switches, overhead line networks, substations and as bushing insulators on high voltage transformers. The high impact strength and stress crack resistance ensure long service life even under mechanical stress.

Insulating standoff bolts and other products, such as insulating supports, insulators and medium voltage insulators, are available directly in the online shop of RCT Reichelt Chemietechnik. The range of RCT Reichelt Chemietechnik offers over 80,000 different products, which are used among others in mechanical engineering, chemical technology, process engineering as well as medical technology.
