RCT Reichelt Chemietechnik

Solenoid valves made from high-quality plastics and stainless steel form the backbone of modern laboratory and chemical technology. These precision control valves ensure reliable media handling under extreme chemical and thermal stress.

Material Diversity for Specific Requirements

Polytetrafluoroethylene (PTFE) solenoid valves offer universal chemical resistance at temperatures from -50°C to +100°C. The valves achieve switching times of 20-50 milliseconds at pressures up to 2 bar. Polyvinylidene fluoride (PVDF) designs combine high media resistance with operating pressures up to 2 bar and vacuum compatibility. Stainless steel solenoid valves enable high-temperature applications up to +180°C with flow rates of 110-400 l/h.

Technical Specifications

The valve systems are available in 2/2-, 3/2- and 6/2-way configurations. Connection voltages include 12V/24V DC and 230V AC. Threaded connections in UNF, NPT and G threads (1/8" to 1/2") ensure flexible integration. Sealing materials made from ethylene propylene diene rubber (EPDM), fluorocarbon rubber (FPM) or perfluorocarbon rubber (FFKM) ensure media-specific sealing.

Product Range

• 2/2-way high-temperature solenoid valve made from stainless steel
• 2/2-way small valve for neutral gases and liquids
• 2/2-way compact valve made from PVDF
• 2/2-way solenoid valve made from PP - direct-acting
• 2/2-way solenoid valve made from PTFE
• 2/2-way solenoid valve made from PTFE - direct-acting
• 2/2-way solenoid valve made from PVC-U - direct-acting
• 2/2-way solenoid valve made from PVDF for critical media
• 2/2-way mini solenoid valve made from PTFE
• 2/2-way miniature high-pressure solenoid valve made from stainless steel
• 2/2-way ultra-pure media solenoid valve made from PTFE
• 2/2-way seat valve - normally closed
• 3/2-way high-temperature solenoid valve made from stainless steel
• 3/2-way compact valve made from PEEK or PVDF
• 3/2-way solenoid valve made from PTFE
• 3/2-way solenoid valve made from PVDF
• 3/2-way mini solenoid valve made from PTFE
• 3/2-way miniature solenoid valve made from stainless steel
• 3/2-way ultra-pure media solenoid valve made from PEEK - micro
• 3/2-way ultra-pure media solenoid valve made from PTFE
• 6/2-way mini solenoid valve made from PTFE

Service life reaches up to 5 million switching cycles with IP65 protection rating. Internal volumes under 60 µl enable microfluidic applications in analytics and pharmaceutical technology.

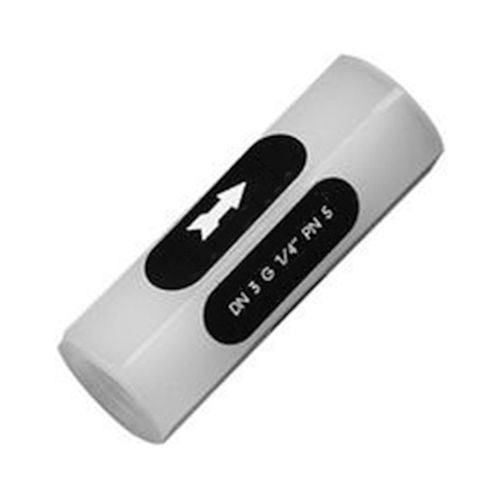

Solenoid valves and other products, such as manual shut-off valves, diaphragm valves and check valves, are available directly in the online shop of RCT Reichelt Chemietechnik. The range of RCT Reichelt Chemietechnik offers over 80,000 different products, which are used among others in mechanical engineering, chemical technology, process engineering as well as medical technology.
