Edge protection profiles provide effective protection against injuries from sharp edges while ensuring reliable sealing against liquid penetration. These profiles combine safety functions with practical sealing properties for versatile applications in laboratories, workshops, and production areas.

Materials and Properties

The edge protection profiles are manufactured from high-quality materials. Polyvinyl chloride (PVC) in black finish is suitable for temperature ranges up to +80 °C and offers cost-effective solutions. Ethylene-propylene-diene-monomer (EPDM) as synthetic rubber impresses with exceptional weather resistance, high elasticity, and chemical resistance. EPDM profiles ensure watertight sealing and are characterized by their long service life.

Fastening and Installation

Integrated steel clamp bands or wire cores secure the firm fit of the profiles without additional screwing or bonding. The clamping range varies between 1 and 4 mm depending on the design and enables simple, tool-free installation on various edge thicknesses.

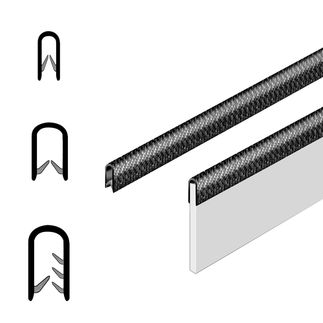

Profile Variants with Specialized Seals

Various sealing configurations meet specific requirements. The KD-1 variant features a top-mounted hollow chamber seal for vertical protection. KD-2 offers laterally mounted hollow chamber seals for horizontal sealing. KD-3 uses lateral sealing lips for precise surface adaptation.

Application Areas

Edge protection profiles are used wherever safety and sealing are required. Typical applications include doors, windows, walls, transitions, and flaps in medical facilities, laboratories, and industrial production sites.

Product Range

• Edge protection profile - with sealing
• Edge protection profile - without sealing

Edge protection profiles and other products, such as anti-slip films, rubber sheets, and insulating sleeves, are available directly in the online shop of RCT Reichelt Chemietechnik. The range of RCT Reichelt Chemietechnik offers over 80,000 different products, which are used among others in mechanical engineering, chemical technology, process engineering as well as medical technology.
