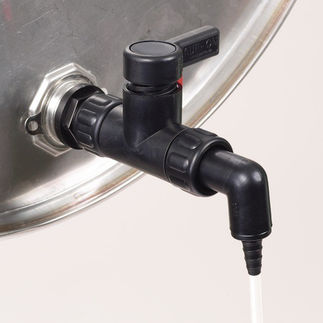

Drain valves are indispensable components for the controlled withdrawal and dosing of liquids from containers, drums and canisters. These fittings, also known as drum valves, tap valves or filling valves, ensure precise dosing and safe handling of various media in laboratory and industrial applications.

Material diversity for different requirements

The product range includes drain valves made from various materials, each offering specific advantages:

Plastic drain valves: High-density polyethylene (HDPE) offers excellent chemical resistance to acids, alkalis and organic solvents at operating temperatures from -30°C to +90°C. Polypropylene (PP) is characterized by compact design and resistance up to +70°C. Conductive polyamide 12 (PA 12) prevents electrostatic charging and is suitable for temperatures up to +110°C.

Metal drain valves: Brass versions for operating pressures up to PN 10 and temperatures from -5°C to +50°C. Stainless steel variants offer maximum corrosion resistance and extended temperature range up to +130°C.

Technical specifications and connections

The valves are available with various threaded connections - from R 1/4" to R 1" - and enable operating pressures between 1.5 and 10 bar depending on material and design. Special variants with hose nozzles, rotating outlet angles or compact design meet the most diverse installation requirements.

Product overview:

• Drain valve made from HDPE with curved outlet - pipe thread R 1/2"
• Drain valve made from brass or stainless steel with curved outlet
• Drain valve made from brass or stainless steel with smooth outlet
• Drain valve made from brass or stainless steel with solder pipe
• Drain valve made from PA 12 - conductive - pipe thread G 3/4"
• Drain valve made from PP - compact - pipe thread G 3/4"
• Drain valve made from PP - pipe thread R 1/2"
• Drain valve made from PP - pipe thread R 3/4"
• Drain valve made from PP with rotating outlet nozzle - pipe thread G 3/4"
• Corner valve made from HDPE - pipe thread R 1/2"
• Corner valve made from HDPE with hose nozzle - wide thread
• Corner valve made from HDPE with hose nozzle - pipe thread R 1/2"

Drain valves and other products, such as manual shut-off valves, multi-way valves and pneumatic ball valves, are available directly in the online shop of RCT Reichelt Chemietechnik. The range of RCT Reichelt Chemietechnik offers over 80,000 different products, which are used among others in mechanical engineering, chemical technology, process engineering as well as medical technology.
