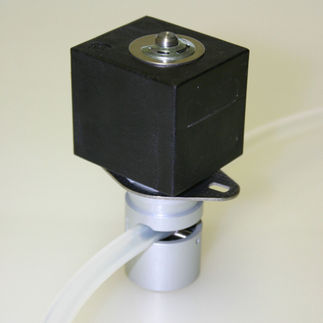

Tube pinch valves offer an innovative solution for precise flow control in laboratory technology, analytical technology, and biotechnology. These electronic valves enable contamination-free media flow control through mechanical pinching of soft elastomer tubing, without requiring media-contacting components.

The valves are characterized by their compact design and low power consumption. Short response times ensure precise media flow control, while simple commissioning minimizes workload. The high service life makes them an economical solution for continuous applications.

The pinch valves are particularly suitable for soft elastomer tubing with a Shore hardness A between 50° and 60°. Silicone tubing and tubing made from ethylene propylene diene rubber (EPDM) are frequently used. The maximum media temperature is +70 °C, enabling use in most laboratory applications.

The housings are available in steel or aluminum, while valve bodies and clamps are manufactured from polyoxymethylene (POM). Control voltages of 12 VDC and 24 VDC are available. The valves are available as either normally closed (NC) or normally open (NO).

The product range includes:

• Tube pinch valve - Mini - with 1 to 8 tubes
• Tube pinch valve - Standard - with 1 tube
• Tube pinch valve - Standard - with 2 tubes

The valves are designed for tube outer diameters from 1.6 mm to 9.5 mm, covering a broad spectrum of applications. Due to their media-free operation, they are particularly suitable for aggressive chemicals and sterile applications in biotechnology.

Tube pinch valves and other products, such as solenoid valves, diaphragm valves and check valves, are available directly in the online shop of RCT Reichelt Chemietechnik. The range of RCT Reichelt Chemietechnik offers over 80,000 different products, which are used among others in mechanical engineering, chemical technology, process engineering as well as medical technology.
