Sterile Tri-Clamp Connectors for Pharmaceutical and Biotechnological Applications
RCT Reichelt Chemietechnik GmbH + Co.
Tri-clamp connectors made from high-performance plastics ensure sterile and safe tube connections in critical applications. These connection systems combine absolute tightness with quick disassembly through two-hinge clamps and meet the highest purity requirements in pharmaceutical and biotechnological processes.
Material diversity for specific requirements
Polypropylene (PP) offers resistance to gasoline, alcohols, ketones and mineral acids at temperatures from -15°C to +120°C. Polyvinylidene fluoride (PVDF) shows absolute resistance to aliphatic hydrocarbons, halogenated solvents and UV radiation in the temperature range -30°C to +150°C. Perfluoroalkoxy (PFA) achieves highest chemical resistance against almost all media at extreme temperatures from -200°C to +260°C.
Sterile process safety
The FDA-compliant and BfR-certified connectors meet the strictest hygiene standards for pharmaceutical production and food processing. Pressure ranges up to 6 bar and the smooth surface structure enable CIP/SIP cleaning procedures without contamination risk.
Product range:
• Straight tri-clamp tube connector made from PP, PVDF or PFA
• Straight tri-clamp hose connector made from PP, PVDF or PFA
• Straight tri-clamp connector with external thread made from PP, PVDF or PFA
• Straight tri-clamp connector with Luer-Lock adapter (male) made from PP, PVDF or PFA

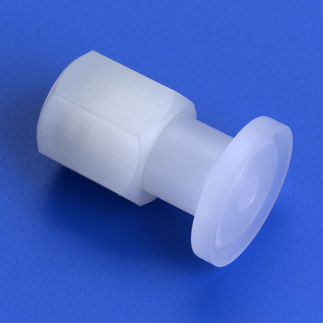

• Straight tri-clamp connector with Luer-Lock adapter (female) made from PP, PVDF or PFA
• RCT® accessories: Tri-clamp replacement gasket
• RCT® accessories: Tri-clamp two-hinge clamp
Tri-clamp connectors and other products, such as quick-release couplings, hose connectors and sealing technology, are available directly in the online shop of RCT Reichelt Chemietechnik. The range of RCT Reichelt Chemietechnik offers over 80,000 different products, which are used among others in mechanical engineering, chemical technology, process engineering as well as medical technology.
Material diversity for specific requirements
Polypropylene (PP) offers resistance to gasoline, alcohols, ketones and mineral acids at temperatures from -15°C to +120°C. Polyvinylidene fluoride (PVDF) shows absolute resistance to aliphatic hydrocarbons, halogenated solvents and UV radiation in the temperature range -30°C to +150°C. Perfluoroalkoxy (PFA) achieves highest chemical resistance against almost all media at extreme temperatures from -200°C to +260°C.
Sterile process safety
The FDA-compliant and BfR-certified connectors meet the strictest hygiene standards for pharmaceutical production and food processing. Pressure ranges up to 6 bar and the smooth surface structure enable CIP/SIP cleaning procedures without contamination risk.
Product range:
• Straight tri-clamp tube connector made from PP, PVDF or PFA
• Straight tri-clamp hose connector made from PP, PVDF or PFA
• Straight tri-clamp connector with external thread made from PP, PVDF or PFA
• Straight tri-clamp connector with Luer-Lock adapter (male) made from PP, PVDF or PFA
• Straight tri-clamp connector with Luer-Lock adapter (female) made from PP, PVDF or PFA
• RCT® accessories: Tri-clamp replacement gasket
• RCT® accessories: Tri-clamp two-hinge clamp
Tri-clamp connectors and other products, such as quick-release couplings, hose connectors and sealing technology, are available directly in the online shop of RCT Reichelt Chemietechnik. The range of RCT Reichelt Chemietechnik offers over 80,000 different products, which are used among others in mechanical engineering, chemical technology, process engineering as well as medical technology.
