Compression fittings made of brass and stainless steel provide a reliable solution for high-pressure resistant pipe connections in hydraulics, chemical technology, and HPLC analytics. These compression ring fittings are standardized according to EN ISO 8434 and DIN 2353 respectively, and achieve pressures up to 350 bar (light duty) or 600 bar (heavy duty).

The operating principle is based on a simple but effective concept: When tightening the conically tapered union nut, the compression ring is compressed and cuts into the pipe wall. This creates an absolutely leak-tight seal that functions reliably even at the highest pressure levels.

Available Designs:
• Straight pipe fitting made of brass or stainless steel
• Straight pipe fitting made of brass or stainless steel - bulkhead

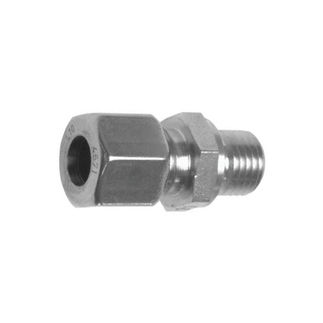

• Straight pipe fitting with male thread made of stainless steel for metric pipes
• Straight pipe fitting with male thread made of brass or stainless steel
• Straight pipe fitting with female thread made of stainless steel
• Straight pipe fitting with female thread made of brass or stainless steel
• Straight pipe fitting with stem made of brass or stainless steel
• Compression ring for pipe fitting made of brass or stainless steel
• T-pipe fitting made of brass or stainless steel
• Union nut for pipe fitting made of brass or stainless steel
• End cap for pipe fitting made of brass or stainless steel
• Elbow pipe fitting made of brass or stainless steel
• Elbow pipe fitting with male thread made of brass or stainless steel

Material Properties:
Brass (CuZn) with approximately 36% copper content shows excellent chemical resistance to gasoline, benzene, acetic acid up to 10%, hydraulic fluids, and many other media. Stainless steel convinces through rust resistance, corrosion resistance, and high-temperature stability.

In HPLC analytics, these capillary fittings serve for secure connection of stainless steel, titanium, and fluoroplastic capillaries. The fittings are equally suitable for stainless steel pipes, titanium pipes, and rigid plastic tubing.

Compression fittings and other products, such as fittings for hoses, push-in connectors for rigid hoses and pipes, and capillary connectors for HPLC, are available directly in the online shop of RCT Reichelt Chemietechnik. The range of RCT Reichelt Chemietechnik offers over 80,000 different products, which are used among others in mechanical engineering, chemical technology, process engineering as well as medical technology.
