Quick-disconnect couplings made of chrome-plated brass offer a reliable solution for critical applications in medical technology, pharmaceuticals, and biotechnology. These two-piece high-tech hose connectors enable fast and secure connections of hose lines while ensuring the highest hygiene and safety standards.

Technical Properties and Functionality

The couplings are made of high-quality brass with hard chrome plating, which ensures a corrosion-resistant and hygienic surface. The integrated seals made of nitrile butadiene rubber (NBR) provide reliable sealing in the temperature range from -40°C to +80°C at a maximum operating pressure of 17 bar.

The one-handed operable coupling system features an automatic shut-off function that ensures immediate media stop when disconnecting. This valve function effectively prevents media leakage and contamination, which is particularly crucial in sterile environments.

Application Areas and Fields of Use

The chrome-plated brass quick couplings are primarily used in biochemical analytics, pharmaceutical equipment construction, and medical technology systems. Furthermore, they prove their worth in beverage and food technology, where hygienic media handling and quick connection changes are required.

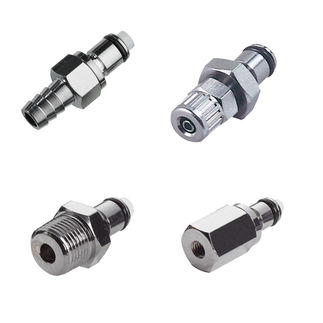

Available Product Variants

• Quick-disconnect plug made of chrome-plated brass, NW 3.2 mm
• Quick-disconnect plug made of chrome-plated brass, NW 3.2 mm - Panel mount
• Quick-disconnect plug made of chrome-plated brass, NW 6.4 mm
• Quick-disconnect plug made of chrome-plated brass, NW 6.4 mm - Panel mount
• Quick-disconnect coupling made of chrome-plated brass, NW 3.2 mm
• Quick-disconnect coupling made of chrome-plated brass, NW 3.2 mm - Panel mount
• Quick-disconnect coupling made of chrome-plated brass, NW 6.4 mm
• Quick-disconnect coupling made of chrome-plated brass, NW 6.4 mm - Panel mount
• Angle quick-disconnect plug made of chrome-plated brass, NW 3.2 mm
• Angle quick-disconnect plug made of chrome-plated brass, NW 6.4 mm

The range includes both single and double shut-off versions in nominal widths of 3.2 mm and 6.4 mm. Connection options include hose barbs, tube fittings, as well as NPT and UNF threads.

Chrome-plated brass quick-disconnect couplings and other products, such as nickel-plated brass quick-disconnect couplings, are available directly in the online shop of RCT Reichelt Chemietechnik. The range of RCT Reichelt Chemietechnik offers over 80,000 different products, which are used among others in mechanical engineering, chemical technology, process engineering as well as medical technology.
